DELIA C2A

Short description of the luminaire

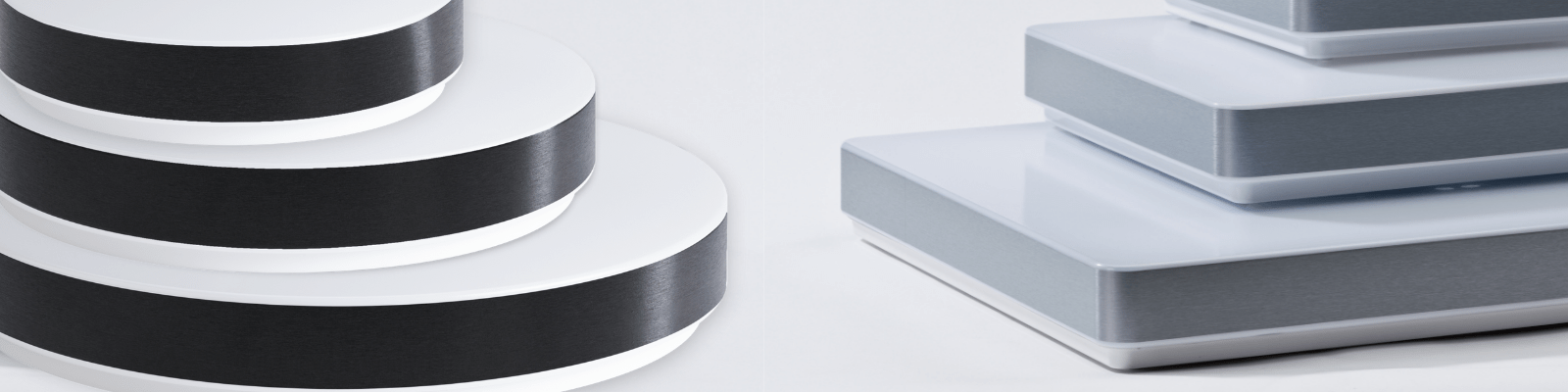

Cylindrical ceiling or wall light with shade diameter Ø360 mm. Product consists of powder-coated metal base and opal polycarbonate with decorative black stripe. Shade is fixed by two-step clamp holders. Suitable for indoor and outdoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Hinge lengths:
Energy class:	D
Impact strength:	IK10
Output:	2 25
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	1530 2160
Lum. flux of light source:	2780 3930
Temperature:

Show advanced filter

Reset

230V

IP54

Possibility of design with emergency / emergency combined unit

Possibility of design with CORRIDOR function

Possibility of design with high-frequency motion sensor

Lamps

Classic on/off Sensor Dimmable Emergency combined Emergency combined + sensor Corridor

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
DEL73520	LED-1L17EMP700KN73/PC19C 4K#	IP54	LED modul	4000	25	3930	2160	60	Detail
DEL73514	LED-1L17E500KN73/PC19C 4K#	IP54	LED modul	4000	17	2900	1600	60	Detail
DEL73020	LED-1L17EMP700KN73/PC19C 3K#	IP54	LED modul	3000	25	3770	2070	60	Detail
DEL73014	LED-1L17E500KN73/PC19C 3K#	IP54	LED modul	3000	17	2780	1530	60	Detail
DEL52589	IN-22KN73/PC19C*	IP54	2×E27		2x25			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
DEL73521	LED-1L17EMP700KN73/PC19C HF 4K#	IP54	LED modul	4000	25	3930	2160	60	Detail
DEL73515	LED-1L17E500KN73/PC19C HF 4K#	IP54	LED modul	4000	17	2900	1600	60	Detail
DEL73021	LED-1L17EMP700KN73/PC19C HF 3K#	IP54	LED modul	3000	25	3770	2070	60	Detail
DEL73015	LED-1L17E500KN73/PC19C HF 3K#	IP54	LED modul	3000	17	2780	1530	60	Detail
DEL52591	IN-22KN73/PC19C HF*	IP54	2×E27		2x25			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
DEL73522	LED-1L17E700KN73/PC19C DALI 4K#	IP54	LED modul	4000	25	3930	2160	60	Detail
DEL73516	LED-1L17E500KN73/PC19C DALI 4K#	IP54	LED modul	4000	17	2900	1600	60	Detail
DEL73022	LED-1L17E700KN73/PC19C DALI 3K#	IP54	LED modul	3000	25	3770	2070	60	Detail
DEL73016	LED-1L17E500KN73/PC19C DALI 3K#	IP54	LED modul	3000	17	2780	1530	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Emergency time (h)	Warranty (month)
DEL73524	LED-1L17EMP700KN73/PC19C/NK1W 4K#	IP54	LED modul	4000	25	3930	2160	3	60	Detail
DEL73518	LED-1L17E500KN73/PC19C/NK1W 4K#	IP54	LED modul	4000	17	2900	1600	3	60	Detail
DEL73024	LED-1L17EMP700KN73/PC19C/NK1W 3K#	IP54	LED modul	3000	25	3770	2070	3	60	Detail
DEL73018	LED-1L17E500KN73/PC19C/NK1W 3K#	IP54	LED modul	3000	17	2780	1530	3	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Emergency time (h)	Warranty (month)
DEL73525	LED-1L17EMP700KN73/PC19C/NK1W HF 4K#	IP54	LED modul	4000	25	3930	2160	3	60	Detail
DEL73519	LED-1L17E500KN73/PC19C/NK1W HF 4K#	IP54	LED modul	4000	17	2900	1600	3	60	Detail
DEL73025	LED-1L17EMP700KN73/PC19C/NK1W HF 3K#	IP54	LED modul	3000	25	3770	2070	3	60	Detail
DEL73019	LED-1L17E500KN73/PC19C/NK1W HF 3K#	IP54	LED modul	3000	17	2780	1530	3	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
DEL73523	LED-1L17E700KN73/PC19C HF CORR 4K#	IP54	LED modul	4000	25	3930	2160	60	Detail
DEL73517	LED-1L17E500KN73/PC19C HF CORR 4K#	IP54	LED modul	4000	17	2900	1600	60	Detail
DEL73023	LED-1L17E700KN73/PC19C HF CORR 3K#	IP54	LED modul	3000	25	3770	2070	60	Detail
DEL73017	LED-1L17E500KN73/PC19C HF CORR 3K#	IP54	LED modul	3000	17	2780	1530	60	Detail
