ELEKTRA 4

Short description of the luminaire

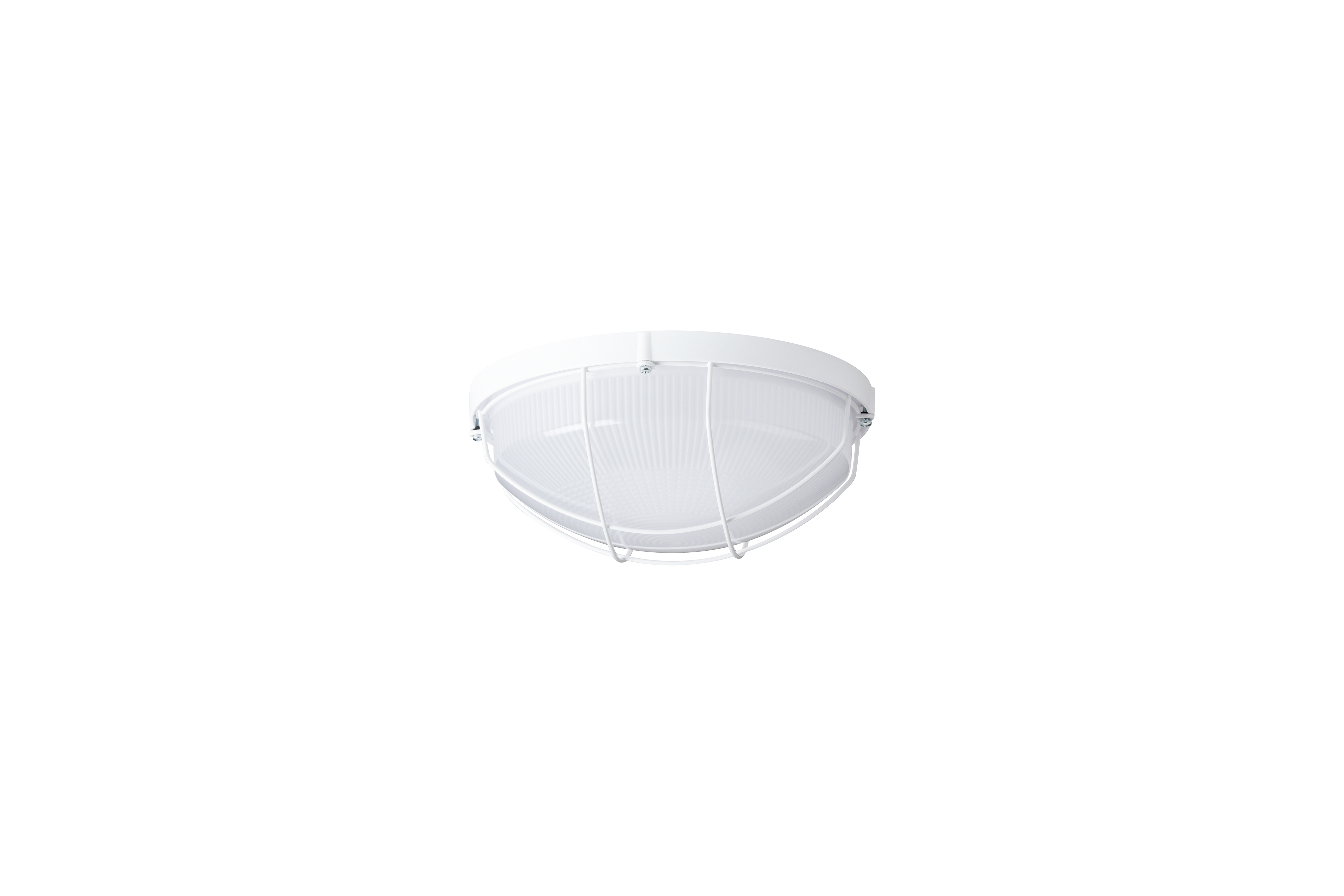

Round industrial light with shade diameter Ø260 mm. Product consists of polycarbonate base and opal (LED) or clear (E27) polycarbonate shade with metal protective basket. Shade is fixed by screws. Suitable for indoor and outdoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Hinge lengths:
Energy class:	D
Impact strength:	IK10
Output:	7 25
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	800 1860
Lum. flux of light source:	1000 2320
Temperature:

Show advanced filter

Reset

230V

IP65

Possibility of design with emergency / emergency combined unit

Possibility of design with high-frequency motion sensor

Lamps

Classic on/off Sensor Emergency combined

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
ELE57754	LED-1L18E350/IN-172P 4K#	IP65	LED modul	4000	15	2320	1860	60	Detail
ELE57745	LED-1L12E500/IN-172P 4K#	IP65	LED modul	4000	7	1040	830	60	Detail
ELE57254	LED-1L18E350/IN-172P 3K#	IP65	LED modul	3000	15	2230	1780	60	Detail
ELE57245	LED-1L12E500/IN-172P 3K#	IP65	LED modul	3000	7	1000	800	60	Detail
ELE50028	IN-172*	IP65 II	E27		25			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
ELE57755	LED-1L18E350/IN-172P HF 4K#	IP65	LED modul	4000	15	2320	1860	60	Detail
ELE57746	LED-1L12E500/IN-172P HF 4K#	IP65	LED modul	4000	7	1040	830	60	Detail
ELE57255	LED-1L18E350/IN-172P HF 3K#	IP65	LED modul	3000	15	2230	1780	60	Detail
ELE57246	LED-1L12E500/IN-172P HF 3K#	IP65	LED modul	3000	7	1000	800	60	Detail
ELE46133	IN-172 HF*	IP65	E27		25			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Emergency time (h)	Warranty (month)
ELE57756	LED-1L18E350/IN-172P/NK1W 4K#	IP65	LED modul	4000	15	2320	1860	3	60	Detail
ELE57747	LED-1L12E500/IN-172P/NK1W 4K#	IP65	LED modul	4000	7	1040	830	3	60	Detail
ELE57256	LED-1L18E350/IN-172P/NK1W 3K#	IP65	LED modul	3000	15	2230	1780	3	60	Detail
ELE57247	LED-1L12E500/IN-172P/NK1W 3K#	IP65	LED modul	3000	7	1000	800	3	60	Detail
