TITAN LE3

Short description of the luminaire

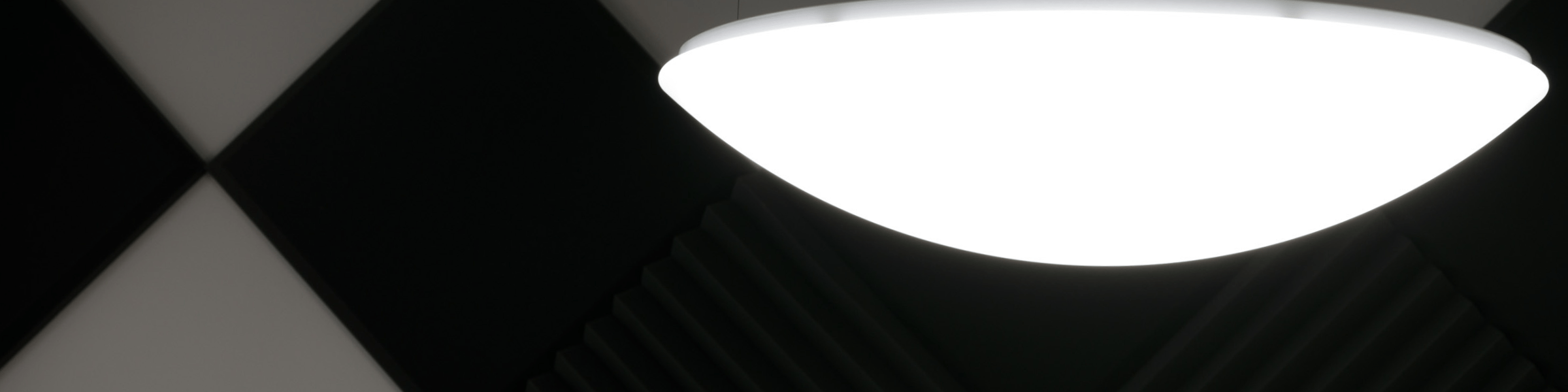

Round pendant light with shade diameter Ø500 mm. Product consists of cableless pendant LE and opal polycarbonate or PMMA shade. Shade is fixed by two-step clamp holders. Suitable for indoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Hinge lengths:
Energy class:	D
Impact strength:	IK04 IK10
Output:	35 48
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	3650 5040
Lum. flux of light source:	5610 7750
Temperature:

Show advanced filter

Reset

230V

IP40

Lamps

Classic on/off Dimmable

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Délka závěsu (mm)	Warranty (month)
TIT68514	LED-1L23E950ZLEN94/PM09/L100 4K##	IP40	LED modul	4000	48	7750	5040	1000	60	Detail
TIT68512	LED-1L23E700ZLEN94/PM09/L100 4K##	IP40	LED modul	4000	35	5850	3800	1000	60	Detail
TIT68014	LED-1L23E950ZLEN94/PM09/L100 3K##	IP40	LED modul	3000	48	7430	4830	1000	60	Detail
TIT68012	LED-1L23E700ZLEN94/PM09/L100 3K##	IP40	LED modul	3000	35	5610	3650	1000	60	Detail
TIT68506	LED-1L23E950ZLEN94/PC09/L100 4K##	IP40	LED modul	4000	48	7750	5040	1000	60	Detail
TIT68504	LED-1L23E700ZLEN94/PC09/L100 4K##	IP40	LED modul	4000	35	5850	3800	1000	60	Detail
TIT68006	LED-1L23E950ZLEN94/PC09/L100 3K##	IP40	LED modul	3000	48	7430	4830	1000	60	Detail
TIT68004	LED-1L23E700ZLEN94/PC09/L100 3K##	IP40	LED modul	3000	35	5610	3650	1000	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Délka závěsu (mm)	Warranty (month)
TIT68515	LED-1L23E950ZLEN94/PM09/L100 DALI 4K##	IP40	LED modul	4000	48	7750	5040	1000	60	Detail
TIT68513	LED-1L23E700ZLEN94/PM09/L100 DALI 4K##	IP40	LED modul	4000	35	5850	3800	1000	60	Detail
TIT68015	LED-1L23E950ZLEN94/PM09/L100 DALI 3K##	IP40	LED modul	3000	48	7430	4830	1000	60	Detail
TIT68013	LED-1L23E700ZLEN94/PM09/L100 DALI 3K##	IP40	LED modul	3000	35	5610	3650	1000	60	Detail
TIT68507	LED-1L23E950ZLEN94/PC09/L100 DALI 4K##	IP40	LED modul	4000	48	7750	5040	1000	60	Detail
TIT68505	LED-1L23E700ZLEN94/PC09/L100 DALI 4K##	IP40	LED modul	4000	35	5850	3800	1000	60	Detail
TIT68007	LED-1L23E950ZLEN94/PC09/L100 DALI 3K##	IP40	LED modul	3000	48	7430	4830	1000	60	Detail
TIT68005	LED-1L23E700ZLEN94/PC09/L100 DALI 3K##	IP40	LED modul	3000	35	5610	3650	1000	60	Detail
