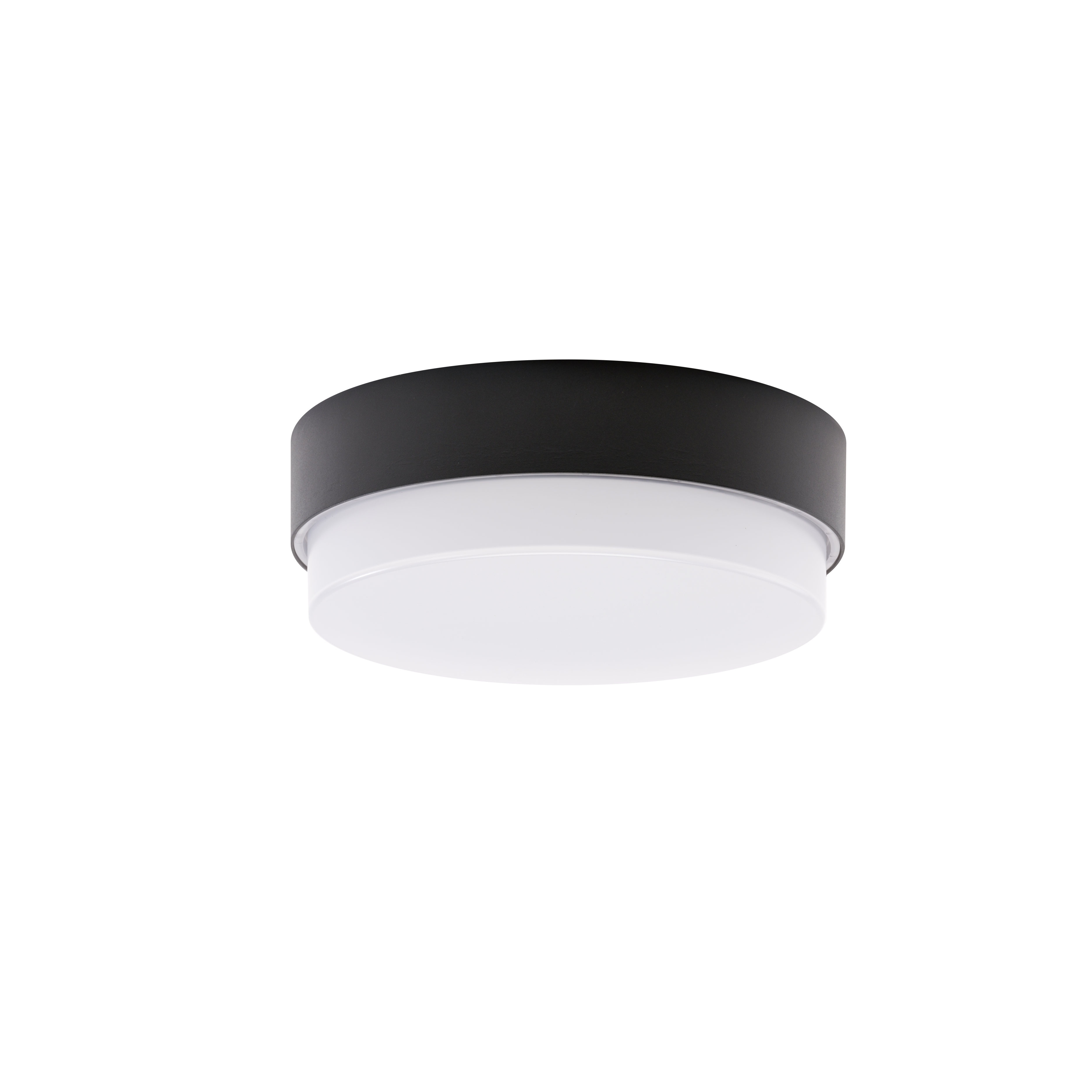

TRITON 1

Short description of the luminaire

Round industrial light with shade diameter Ø280 mm. Product consists of polycarbonate base and opal polycarbonate shade. Shade is fixed by bayonet system. Suitable for indoor and outdoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Hinge lengths:
Energy class:	D
Impact strength:	IK10
Output:	2 25
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	1640 2300
Lum. flux of light source:	2000 2810
Temperature:

Show advanced filter

Reset

230V

IP65

Possibility of design with emergency / emergency combined unit

Possibility of design with high-frequency motion sensor

Lamps

Classic on/off Sensor Dimmable Emergency combined

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57774	LED-1L14EMP700/IN-182 C 4K#	IP65	LED modul	4000	18	2810	2300	60	Detail
TRI57770	LED-1L14E500/IN-182 C 4K#	IP65	LED modul	4000	13	2080	1710	60	Detail
TRI57274	LED-1L14EMP700/IN-182 C 3K#	IP65	LED modul	3000	18	2690	2210	60	Detail
TRI57270	LED-1L14E500/IN-182 C 3K#	IP65	LED modul	3000	13	2000	1640	60	Detail
TRI57711	LED-1L14EMP700/IN-182 S 4K#	IP65	LED modul	4000	18	2810	2300	60	Detail
TRI57708	LED-1L14E500/IN-182 S 4K#	IP65	LED modul	4000	13	2080	1710	60	Detail
TRI57211	LED-1L14EMP700/IN-182 S 3K#	IP65	LED modul	3000	18	2690	2210	60	Detail
TRI57208	LED-1L14E500/IN-182 S 3K#	IP65	LED modul	3000	13	2000	1640	60	Detail
TRI57703	LED-1L14EMP700/IN-182 B 4K#	IP65	LED modul	4000	18	2810	2300	60	Detail
TRI57700	LED-1L14E500/IN-182 B 4K#	IP65	LED modul	4000	13	2080	1710	60	Detail
TRI57203	LED-1L14EMP700/IN-182 B 3K#	IP65	LED modul	3000	18	2690	2210	60	Detail
TRI57200	LED-1L14E500/IN-182 B 3K#	IP65	LED modul	3000	13	2000	1640	60	Detail
TRI50080	IN-182 B*	IP65 II	E27		25			60	Detail
TRI50086	IN-182/2 B*	IP65 II	2×E27		2x25			60	Detail
TRI50083	IN-182 S*	IP65 II	E27		25			60	Detail
TRI50087	IN-182/2 S*	IP65 II	2×E27		2x25			60	Detail
TRI53530	IN-182 C*	IP65 II	E27		25			60	Detail
TRI53532	IN-182/2 C*	IP65 II	2×E27		2x25			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57775	LED-1L14EMP700/IN-182 C HF 4K#	IP65	LED modul	4000	18	2810	2300	60	Detail
TRI57771	LED-1L14E500/IN-182 C HF 4K#	IP65	LED modul	4000	13	2080	1710	60	Detail
TRI57275	LED-1L14EMP700/IN-182 C HF 3K#	IP65	LED modul	3000	18	2690	2210	60	Detail
TRI57271	LED-1L14E500/IN-182 C HF 3K#	IP65	LED modul	3000	13	2000	1640	60	Detail
TRI57712	LED-1L14EMP700/IN-182 S HF 4K#	IP65	LED modul	4000	18	2810	2300	60	Detail
TRI57709	LED-1L14E500/IN-182 S HF 4K#	IP65	LED modul	4000	13	2080	1710	60	Detail
TRI57212	LED-1L14EMP700/IN-182 S HF 3K#	IP65	LED modul	3000	18	2690	2210	60	Detail
TRI57209	LED-1L14E500/IN-182 S HF 3K#	IP65	LED modul	3000	13	2000	1640	60	Detail
TRI57704	LED-1L14EMP700/IN-182 B HF 4K#	IP65	LED modul	4000	18	2810	2300	60	Detail
TRI57701	LED-1L14E500/IN-182 B HF 4K#	IP65	LED modul	4000	13	2080	1710	60	Detail
TRI57204	LED-1L14EMP700/IN-182 B HF 3K#	IP65	LED modul	3000	18	2690	2210	60	Detail
TRI57201	LED-1L14E500/IN-182 B HF 3K#	IP65	LED modul	3000	13	2000	1640	60	Detail
TRI50081	IN-182 HF B*	IP65	E27		25			60	Detail
TRI50084	IN-182 HF S*	IP65	E27		25			60	Detail
TRI53531	IN-182 HF C*	IP65	E27		25			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57776	LED-1L14E700/IN-182 C DALI 4K#	IP65	LED modul	4000	18	2810	2300	60	Detail
TRI57772	LED-1L14E500/IN-182 C DALI 4K#	IP65	LED modul	4000	13	2080	1710	60	Detail
TRI57276	LED-1L14E700/IN-182 C DALI 3K#	IP65	LED modul	3000	18	2690	2210	60	Detail
TRI57272	LED-1L14E500/IN-182 C DALI 3K#	IP65	LED modul	3000	13	2000	1640	60	Detail
TRI57713	LED-1L14E700/IN-182 S DALI 4K#	IP65	LED modul	4000	18	2810	2300	60	Detail
TRI57710	LED-1L14E500/IN-182 S DALI 4K#	IP65	LED modul	4000	13	2080	1710	60	Detail
TRI57213	LED-1L14E700/IN-182 S DALI 3K#	IP65	LED modul	3000	18	2690	2210	60	Detail
TRI57210	LED-1L14E500/IN-182 S DALI 3K#	IP65	LED modul	3000	13	2000	1640	60	Detail
TRI57705	LED-1L14E700/IN-182 B DALI 4K#	IP65	LED modul	4000	18	2810	2300	60	Detail
TRI57702	LED-1L14E500/IN-182 B DALI 4K#	IP65	LED modul	4000	13	2080	1710	60	Detail
TRI57205	LED-1L14E700/IN-182 B DALI 3K#	IP65	LED modul	3000	18	2690	2210	60	Detail
TRI57202	LED-1L14E500/IN-182 B DALI 3K#	IP65	LED modul	3000	13	2000	1640	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Emergency time (h)	Warranty (month)
TRI57777	LED-1L14EMP700/IN-182/NK1W C 4K#	IP65	LED modul	4000	18	2810	2300	3	60	Detail
TRI57773	LED-1L14E500/IN-182/NK1W C 4K#	IP65	LED modul	4000	13	2080	1710	3	60	Detail
TRI57277	LED-1L14EMP700/IN-182/NK1W C 3K#	IP65	LED modul	3000	18	2690	2210	3	60	Detail
TRI57273	LED-1L14E500/IN-182/NK1W C 3K#	IP65	LED modul	3000	13	2000	1640	3	60	Detail
TRI57715	LED-1L14EMP700/IN-182/NK1W S 4K#	IP65	LED modul	4000	18	2810	2300	3	60	Detail
TRI57714	LED-1L14E500/IN-182/NK1W S 4K#	IP65	LED modul	4000	13	2080	1710	3	60	Detail
TRI57215	LED-1L14EMP700/IN-182/NK1W S 3K#	IP65	LED modul	3000	18	2690	2210	3	60	Detail
TRI57214	LED-1L14E500/IN-182/NK1W S 3K#	IP65	LED modul	3000	13	2000	1640	3	60	Detail
TRI57707	LED-1L14EMP700/IN-182/NK1W B 4K#	IP65	LED modul	4000	18	2810	2300	3	60	Detail
TRI57706	LED-1L14E500/IN-182/NK1W B 4K#	IP65	LED modul	4000	13	2080	1710	3	60	Detail
TRI57207	LED-1L14EMP700/IN-182/NK1W B 3K#	IP65	LED modul	3000	18	2690	2210	3	60	Detail
TRI57206	LED-1L14E500/IN-182/NK1W B 3K#	IP65	LED modul	3000	13	2000	1640	3	60	Detail
