LinkedIn DELIA C1
Product code:DEL69058
Type:LED-1L14E500KN62/PM22C/NK1W HF 3K#
Short description
White surface-mounted LED light with emergency unit combined with sensor and PMMA shade.
Model
Other products
Documents to download
Technical
| Types of luminaires: | Emergency combined + sensor |
| Mounting type: | surface mounted |
| Base material: | steel |
| Shade material: | opal polymethyl methacrylate |
| Base color: | white Ral9003 |
| Shade color: | white - black |
| Holding the shade: | folding system |
| Mounting location: | ceiling/wall |
| Width: | 300 mm |
| Length: | 300 mm |
| Height: | 75 mm |
| Diameter: | 300 mm |
| mounting holes (diameter): | 3xØ4mm, 3xØ5mm |
| Installation wire (diameter): | 2xØ16mm |
| Energy class: | D |
| Impact strength: | IK04 |
Electric
| Number of power supplies: | 1 |
| Power of one supply: | 13 W |
| Output: | 13 W |
| Ingress Protection: | IP54 |
| Socket: | LED modul |
| Sensor: | HF |
| Battery type: | NiCd |
| Emergency time: | 3 h |
| terminal block: | screwless, snap terminal block |

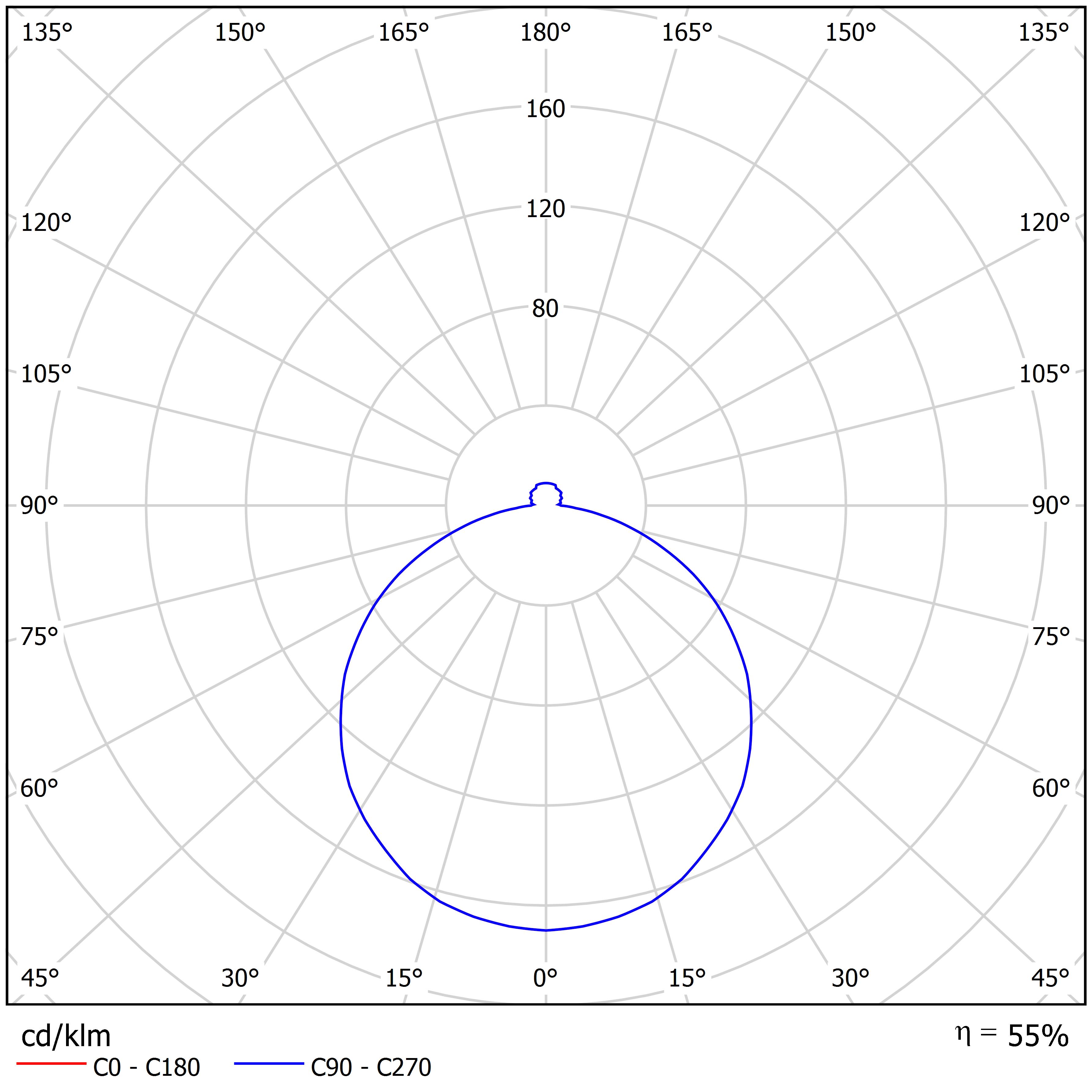

Luminous
| Lum. flux of luminaire: | 1100 lm |
| Lum. flux of light source: | 2000 lm |
| Lum. flux of light source in emergency mode: | 150 lm |
| Temperature: | 3000 K |
| Rated life time LED L80/B10: | 100000 hours |
| CRI: | Ra80 |
| MacAdam: | 3 |
Logistic
| EAN | 8591728076887 |
| Weight NTTO | 1 Kg |
| Weight BTTO | 1.2 Kg |
| Number of cartons | 1 |
| Package volume | 0.01 m3 |
| Package 1 width | 0.31 m |
| Package 1 length | 0.31 m |
| Package 1 height | 0.1 m |
| Warranty: | 60 |
230V
IP54
