LinkedIn DELIA L4
Product code:DEL66857
Type:LED-6L51EMP700ZLN10/PM25/L100 4K##
Short description
White pendant LED light ON/OFF and PMMA shade.
Model
Other products
Documents to download
Technical
| Types of luminaires: | Classic on/off |
| Mounting type: | Suspended - wire |
| Base material: | steel |
| Shade material: | opal polymethyl methacrylate |
| Base color: | white Ral9003 |
| Shade color: | white |
| Holding the shade: | folding system |
| Mounting location: | ceiling |

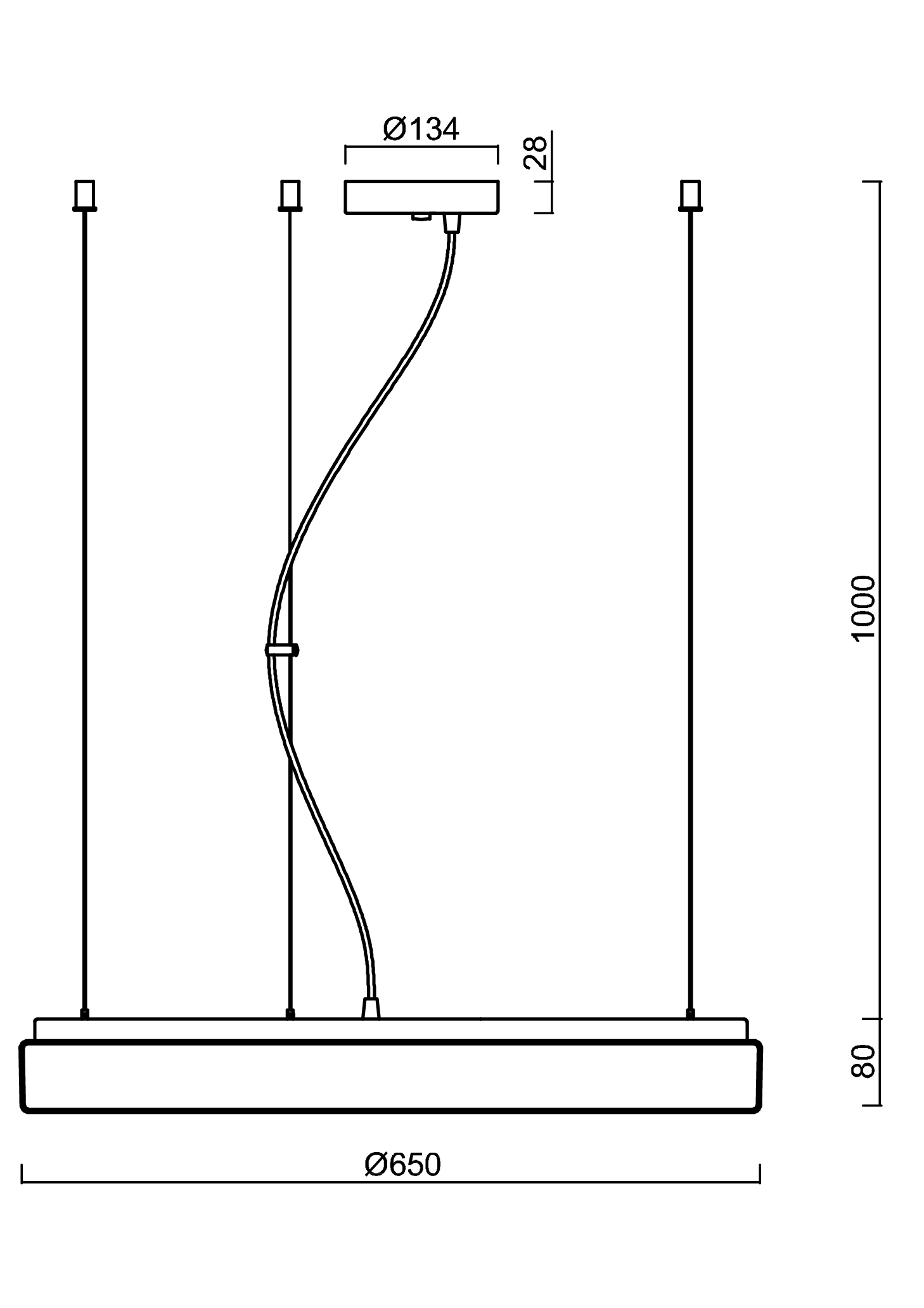

| Width: | 650 mm |
| Length: | 650 mm |
| Height: | 85 mm |
| Diameter: | 650 mm |
| mounting holes (diameter): | 2xØ5mm |
| Installation wire (diameter): | 2xØ16mm |
| Hinge lengths: | 1000 mm |
| Energy class: | D |
| Impact strength: | IK04 |
Electric
| Number of power supplies: | 1 |
| Power of one supply: | 65 W |
| Output: | 65 W |
| Ingress Protection: | IP40 |
| Socket: | LED modul |
| terminal block: | screw terminal block |
Luminous
| Lum. flux of luminaire: | 7250 lm |
| Lum. flux of light source: | 10980 lm |
| Temperature: | 4000 K |
| Rated life time LED L80/B10: | 100000 hours |
| CRI: | Ra80 |
| MacAdam: | 3 |
Multipower
Possibility of output adjustment by the user (DIP switch on the current source).
| I [mA] | 700 | 600 | 500 | 400 | |
| [%] | 100 | 86 | 71 | 57 |
Logistic
| EAN | 8591728075460 |
| Weight NTTO | 5.6 Kg |
| Weight BTTO | 7 Kg |
| Number of cartons | 1 |
| Package volume | 0.08 m3 |
| Package 1 width | 0.68 m |
| Package 1 length | 0.17 m |
| Package 1 height | 0.69 m |
| Warranty: | 60 |
230V
IP40
